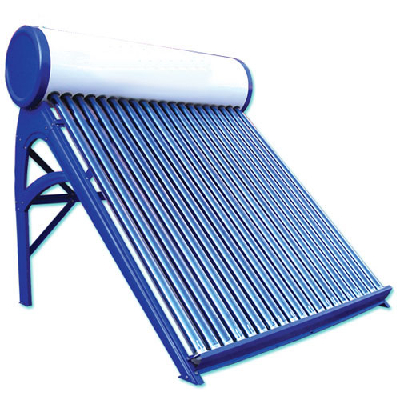

Solar heating collector

Working principle

Sunlight passes through the first glass to the second layer of glass with black heat absorption layer which absorbs the heat of solar energy. Due to the vacuum insulation between the two layers of glass, heat transfer will greatly reduce (radiation heat transfer still exists, but no heat conduction and thermal convection), most of the heat is only passed to and heat the water in the inner tube. Then hot water becomes light and goes into the insulation water storage barrel, cold water in the barrel temperature flow into the glass tube, so goes on again and again.

Components of solar water heater

Solar water heater collector : evacuated tubes and manifold

Storage tank

Bracket of collector and water tank

PLC controller

Water pipes

Specification

Heat collection elements in the solar heater are solar vacuum tubes which contents an outer tube, an inner tube with a selective absorbing coating. All glass solar heat collection vacuum tubes are generally made of high boron silicon 3.3. And selective heat absorbing film uses vacuum sputtering selective coating process.

Company Information

Yaoguo Solar is located in Shandong Province, China. The factory covers an area of 68000M2. Right now, we have staff of 580, among whom, 106 technicians and 58 senior management staff.  As one of the professional manufacturers of solar vacuum tube, all specifications of solar vacuum could be offered such as 47*1500mm, 58*1800mm, 58*2100mm and so on. Right now, the capacity reaches 10 million pieces per year and tubes are exported to more than 20 countries around the world, such as India, Turkey, Mexico, Syria, Lithuania, Brazil, Chile, USA, Jordan, and Egypt, etc..

And also many solar heat products are designed with cost-efficiency. We are devoted in making high quality products with the latest technology. Till now, there are CE, CCC, ISO9001, ISO14001, ISO18001 and 17 patents. Keep innovation, keep quality, keep service.
