solar water heater vacuum tubes

solar water heater vacuum tubes

  • Min.Order Quantity: 240 Pieces
  • Supply Ability: 8000000 Pieces per Year
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Piece/Pieces
| Factory
Experience:2009-08-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.001
  • Place of Origin:  China
  • Brand Name:  Yaoguo Solar thermal
  • Model Number:  YG 58-1800
  • Weight: 2.200 kg

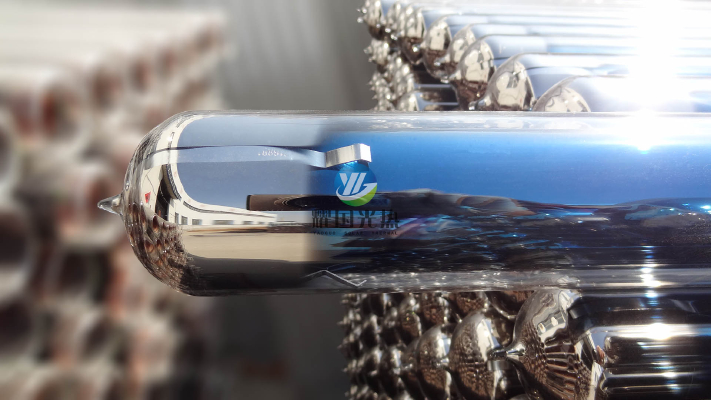

Yaoguo Solar Thermal is specialized in making solar vacuum tubes. Tubes not only have different colors, but also have very stable film, which leads to a fast heating and an excellent heat preservation.


A solar vacuum tube is mainly made of these parts:

1. Getter 2. Spring holder 3. Outer Tube 4. Inner tube 5. Vacuum 6. Anti-reflection layer 7. Absorbance layer 8. Infrared-reflection layer



How does Yaoguo solar vacuum tube work?

After installation and check the heating collector system correctly, cold water is filled in the water tank. Due to gravity, cold water flowed into the vacuum tubes, absorbing the heat (which the temp. might reach 250 degree centigrade). Cold water changes into hot water and goes back to the water tank.


Item

Specification

Outer tube diameter (mm)

47

58

Inner tube diameter (mm)

37

47

Tube length (mm)

1500,1600, 1800

1500, 1600, 1800, 1900, 2000, 2100

Thickness of Tube(mm)

1.60±0.15

1.60±0.15, 1.8±0.15

Colors

Blue, Purple, Black, Yellow

Coating property

Structure

Cu-SS-ALN

Sediment method

3 Targets magnetron sputtering

Absorption ratio

α=0.93~0.96(AM1.5)

Emission ratio

ε=0.04~0.06(80°C±5°C)

Vacuum tightness

P<=5.0×10-3 Pa

Heat loss

0.4 -0.6W/(m2.°C)

Resist cold temperature

-25°C

Resist high temperature

250°C

Service life

15 Years



Yaoguo Solar has a complete industrial chain of solar vacuum tube, which ensures the quality and quantity of the goods. Solar borosilicate vacuum tube is a kind of high-precision products. So all the procedures finishing in one place could produce items with stable quality, and reduce cost at maximum to benefit the customers.


Our Advantages

Reasons using Yaoguo solar vacuum tubes are:

1. Over 10 years production experiences

2. Production chain from glass tube to solar vacuum tube which could ensure the stability of tubes.

3. 8 years export experiences

4. Global network

5. Fast delivery (production time: 5 containers within 5 days; 10 containers within 10 days.


Packaging & Shipping

Loading Quantity

Specification

Quantity each carton

20ft

40HC

Ø 47*1500mm

15/20/24pcs

5040pcs

12000pcs

Ø 47*1800mm

15/20/24pcs

4600pcs

10200pcs

Ø 58*1800mm

10/15pcs

2600pcs

6600pcs


Company Information


Yaoguo Solar is located in Shandong Province, China. The factory covers an area of 68000M2. Right now, we have staff of 580, among whom, 106 technicians and 58 senior management staff.  As one of the professional manufacturers of solar vacuum tube, all specifications of solar vacuum could be offered such as 47*1500mm, 58*1800mm, 58*2100mm and so on. Right now, the capacity reaches 10 million pieces per year and tubes are exported to more than 20 countries around the world, such as India, Turkey, Mexico, Syria, Lithuania, Brazil, Chile, USA, Jordan, and Egypt, etc..

And also many solar heat products are designed with cost-efficiency. We are devoted in making high quality products with the latest technology. Till now, there are CE, CCC, ISO9001, ISO14001, ISO18001 and 17 patents. Keep innovation, keep quality, keep service.
